Parallel nodes definition

LangGraph4j lets you defines parallel nodes to speed up your total graph execution.

Graph Managed Concurrent Execution

To do this you must provide an Executor to graph for specific parallel node using RunnableConfig

var runnableConfig = RunnableConfig.builder()
        .addParallelNodeExecutor( "<parallel node id>", ForkJoinPool.commonPool() )
        .build( );

Note:

If an Executor is not specified the parallel nodes will be scheduled sequentially and to run them concurrently you'll must rely on the async features of CompletableFuture using AsyncNodeAction

Parallel nodes limitation ‼️

Currently there are some overall limitations on parallel nodes implementation execution:

• Only the Fork-Join model is supported

          ┌─┐
          │A│
          └─┘
           |
     ┌-----------┐
     |     |     |
   ┌──┐  ┌──┐  ┌──┐
   │A1│  │A2│  │A3│
   └──┘  └──┘  └──┘
     |     |     |
     └-----------┘
           |
          ┌─┐
          │B│
          └─┘

* Only one paraller step is allowed ⚠️

          ┌─┐
          │A│
          └─┘
           |
     ┌-----------┐
     |     |     |
   ┌──┐  ┌──┐  ┌──┐
   │A1│  │A2│  │A3│
   └──┘  └──┘  └──┘
     |     |     |
   ┌──┐    |     |
   │A4│ ❌ Not Allowed
   └──┘    |     |
     |     |     |
     └-----------┘
           |
          ┌─┐
          │B│
          └─┘

• No Conditional Edges are allowed ⚠️

Below are some examples showing how to add create branching dataflows.

Define Graph with parallel nodes

It is enough to associate to the same edges multiple nodes.

Example - Pefine parallel nodes

var workflow = new MessagesStateGraph<String>()
                .addNode("A", makeNode("A"))
                .addNode("A1", makeNode("A1"))
                .addNode("A2", makeNode("A2"))
                .addNode("A3", makeNode("A3"))
                .addNode("B", makeNode("B"))
                .addNode("C", makeNode("C"))
                .addEdge("A", "A1")
                .addEdge("A", "A2")
                .addEdge("A", "A3")
                .addEdge("A1", "B")
                .addEdge("A2", "B")
                .addEdge("A3", "B")
                .addEdge("B", "C")
                .addEdge(START, "A")
                .addEdge("C", END)
                .compile();

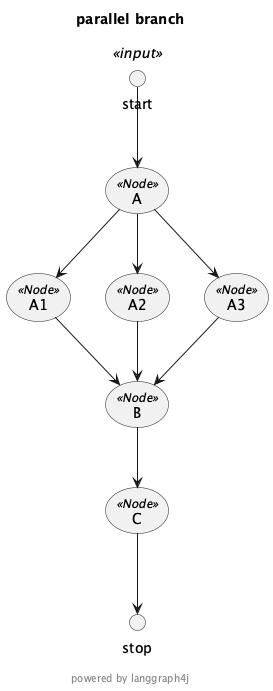

diagram

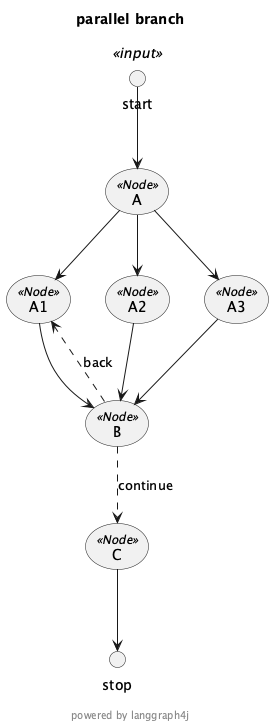

You can also return on a specific parallel node only after all parallel execution is end

var workflow = new MessagesStateGraph<String>()
                .addNode("A", makeNode("A"))
                .addNode("A1", makeNode("A1"))
                .addNode("A2", makeNode("A2"))
                .addNode("A3", makeNode("A3"))
                .addNode("B", makeNode("B"))
                .addNode("C", makeNode("C"))
                .addEdge("A", "A1")
                .addEdge("A", "A2")
                .addEdge("A", "A3")
                .addEdge("A1", "B")
                .addEdge("A2", "B")
                .addEdge("A3", "B")
                // .addEdge("B", "C")
                .addConditionalEdges( "B",
                    edge_async( state ->
                        state.lastMinus(1)
                            .filter( m -> Objects.equals(m,"A3"))
                            .map( m -> "continue" )
                            .orElse("back") ),
                    EdgeMappings.builder()
                        .to( "A1", "back" )
                        .to( "C" , "continue")
                        .build()
                 )
                .addEdge(START, "A")
                .addEdge("C", END)
                .compile();

Use compiled sub graph as parallel node

To overcome the problem of supporting a single step in parallel branch, we can use the subgraphs. This example answer to issue Will plan support multiple target on parallel node? #104

Example - Mix nodes and subgraphs

var subgraphA3 = new MessagesStateGraph<String>()
                .addNode("A3.1", makeNode("A3.1"))
                .addNode("A3.2", makeNode("A3.2"))
                .addEdge(START, "A3.1")
                .addEdge( "A3.1", "A3.2")
                .addEdge("A3.2", END)
                .compile();
var subgraphA1 = new MessagesStateGraph<String>()
                .addNode("A1.1", makeNode("A1.1"))
                .addNode("A1.2", makeNode("A1.2"))
                .addEdge(START, "A1.1")
                .addEdge( "A1.1", "A1.2")
                .addEdge("A1.2", END)
                .compile();

var workflow = new MessagesStateGraph<String>()
                .addNode("A", makeNode("A"))
                .addNode("A1", subgraphA1)
                .addNode("A2", makeNode("A2"))
                .addNode("A3", subgraphA3)
                .addNode("B", makeNode("B"))
                .addEdge("A", "A1")
                .addEdge("A", "A2")
                .addEdge("A", "A3")
                .addEdge("A1", "B")
                .addEdge("A2", "B")
                .addEdge("A3", "B")
                .addEdge(START, "A")
                .addEdge("B", END)
                .compile();

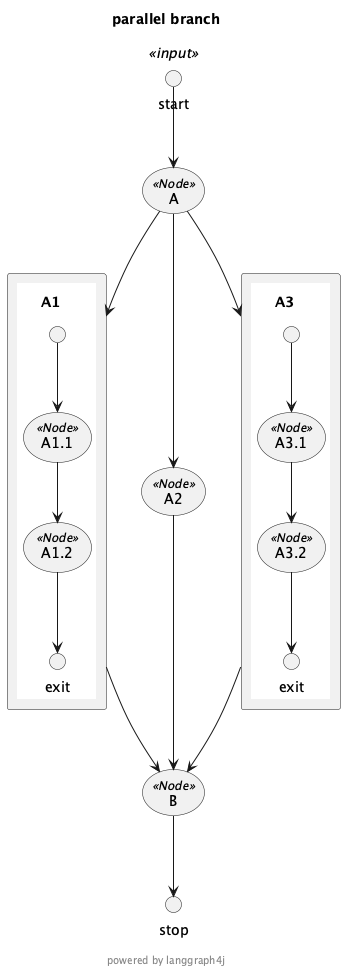

diagram

Example - Only subgraphs

var subgraphA3 = new MessagesStateGraph<String>()
                .addNode("A3.1", makeNode("A3.1"))
                .addNode("A3.2", makeNode("A3.2"))
                .addEdge(START, "A3.1")
                .addEdge( "A3.1", "A3.2")
                .addEdge("A3.2", END)
                .compile();

var subgraphA2 = new MessagesStateGraph<String>()
                .addNode("A2.1", makeNode("A2.1"))
                .addNode("A2.2", makeNode("A2.2"))
                .addEdge(START, "A2.1")
                .addEdge( "A2.1", "A2.2")
                .addEdge("A2.2", END)
                .compile();

var subgraphA1 = new MessagesStateGraph<String>()
                .addNode("A1.1", makeNode("A1.1"))
                .addNode("A1.2", makeNode("A1.2"))
                .addEdge(START, "A1.1")
                .addEdge( "A1.1", "A1.2")
                .addEdge("A1.2", END)
                .compile();

var workflow = new MessagesStateGraph<String>()
                .addNode("A", makeNode("A"))
                .addNode("A1", subgraphA1)
                .addNode("A2", subgraphA2)
                .addNode("A3", subgraphA3)
                .addNode("B", makeNode("B"))
                .addEdge("A", "A1")
                .addEdge("A", "A2")
                .addEdge("A", "A3")
                .addEdge("A1", "B")
                .addEdge("A2", "B")
                .addEdge("A3", "B")
                .addEdge(START, "A")
                .addEdge("B", END)
                .compile();

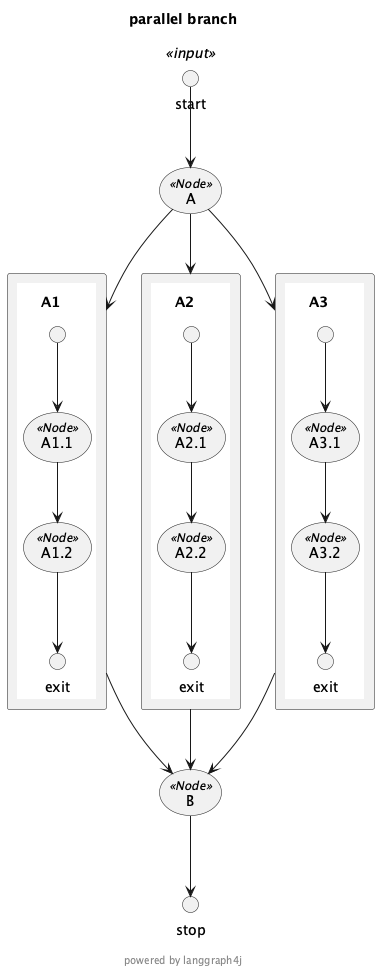

diagram

---

Take a look 👀 to parallel-branch.ipynb to understand the run-time behaviours
